• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock
• Coat hooks, rear driver and passenger side
• Mirror, inside rearview manual day/night
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt

• Air cleaner, high-capacity
• Alternator, 125 amps
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, hydroformed
• Rear axle, 3.73 ratio
• Recovery hooks, front, frame-mounted

• Daytime Running Lamps with automatic exterior lamp control
• OnStar Equipped (subscription required)

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED WITH OVERDRIVE AND TOW/HAUL MODE

• (STD)

MIRRORS, OUTSIDE HIGH-VISIBILITY VERTICAL CAMPER-STYLE, BLACK

• with manual folding and extension and lower convex spotter glass

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI

• (312 hp [232.6 kW] @ 4400 rpm
• 373 lb-ft. [503.5 N-m] @ 4400 rpm) (STD)

SNOW PLOW PREP PACKAGE

• includes 15-amp power for backup and roof emergency light
• high-flow front bumper
• forward lamp wiring harness
• (TRW) Provision for cab roof mounted lamp/beacon
• instrument panel jumper wiring harness for electric trailer brake controller and (NZZ) Skid Plate Package Includes (KW1) 160-amp alternator with (LY6) Vortec 6.0L V8 SFI engine. Includes (K76) dual 125-amp alternators with (LMM) Duramax 6.6L Turbo Diesel V8 engine.)

PAINT, SOLID

• (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL CLIMATE CONTROL

• (Standard on Extended Cab models only.)

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp. 30-amp nominal rating.

TIRES, LT225/75R17E ON-/OFF-ROAD, BLACKWALL

• (Includes 6 tires with (ZW9) pickup box delete.)

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock (STD)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes Standard Equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED WITH OVERDRIVE AND TOW/HAUL MODE (STD)
• MIRRORS OUTSIDE HIGH-VISIBILITY VERTICAL CAMPER-STYLE BLACK with manual folding and extension and lower convex spotter glass
• REAR AXLE 4.10 RATIO
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI (312 hp [232.6 kW] @ 4400 rpm 373 lb-ft. [503.5 N-m] @ 4400 rpm) (STD)
• SNOW PLOW PREP PACKAGE includes 15-amp power for backup and roof emergency light high-flow front bumper forward lamp wiring harness (TRW) Provision for cab roof mounted lamp/beacon instrument panel jumper wiring harness for electric trailer brake controller and (NZZ) Skid Plate Package Includes (KW1) 160-amp alternator with (LY6) Vortec 6.0L V8 SFI engine. Includes (K76) dual 125-amp alternators with (LMM) Duramax 6.6L Turbo Diesel V8 engine.)
• PAINT SOLID (STD)
• BATTERY AUXILIARY HEAVY-DUTY 600 COLD-CRANKING AMPS MAINTENANCE-FREE
• AIR CONDITIONING SINGLE-ZONE MANUAL CLIMATE CONTROL (Standard on Extended Cab models only.)
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• TRAILER BRAKE CONTROLLER INTEGRATED
• ALTERNATOR 160 AMPS
• LICENSE PLATE BRACKET FRONT
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp. 30-amp nominal rating.
• TIRES LT225/75R17E ON-/OFF-ROAD BLACKWALL (Includes 6 tires with (ZW9) pickup box delete.)
• SEAT TRIM DARK TITANIUM CLOTH
• SUMMIT WHITE
• SEAT ADJUSTER MANUAL LUMBAR CONTROL ON THE DRIVER-SIDE
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Steel Wheels
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Split Bench Seat
• Adjustable Steering Wheel
• Passenger Vanity Mirror
• Front Reading Lamps
• Power Outlet
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 600
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Capacity (amps): 125
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 8550
• Curb Weight - Front (lbs): 3490
• Curb Weight - Rear (lbs): 2496
• Gross Vehicle Weight Rating Cap (lbs): 12000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 3-Stage Spring
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.41
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.8
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: QCV
• Front Tire Order Code: QBD
• Rear Tire Order Code: QCV
• Rear Tire Order Code: QBD
• Front Tire Size: LT225/75R17E
• Rear Tire Size: LT225/75R17E
• Front Tire Capacity (lbs): 2430
• Rear Tire Capacity (lbs): 2150
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 53.2
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 27
• Aux Fuel Tank Capacity, Approx (gal): 23
• Fuel Tank Location: Front
• Aux Fuel Tank Location: Rear
• Exterior Dimensions
• Wheelbase (in): 161.5
• Length, Overall w/o rear bumper (in): 251.9
• Width, Max w/o mirrors (in): 79.8
• Height, Overall (in): 76.2
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 51.0
• Front Bumper to Back of Cab (in): 116.4
• Cab to Axle (in): 84.4
• Cab to End of Frame (in): 135.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.4
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Summary

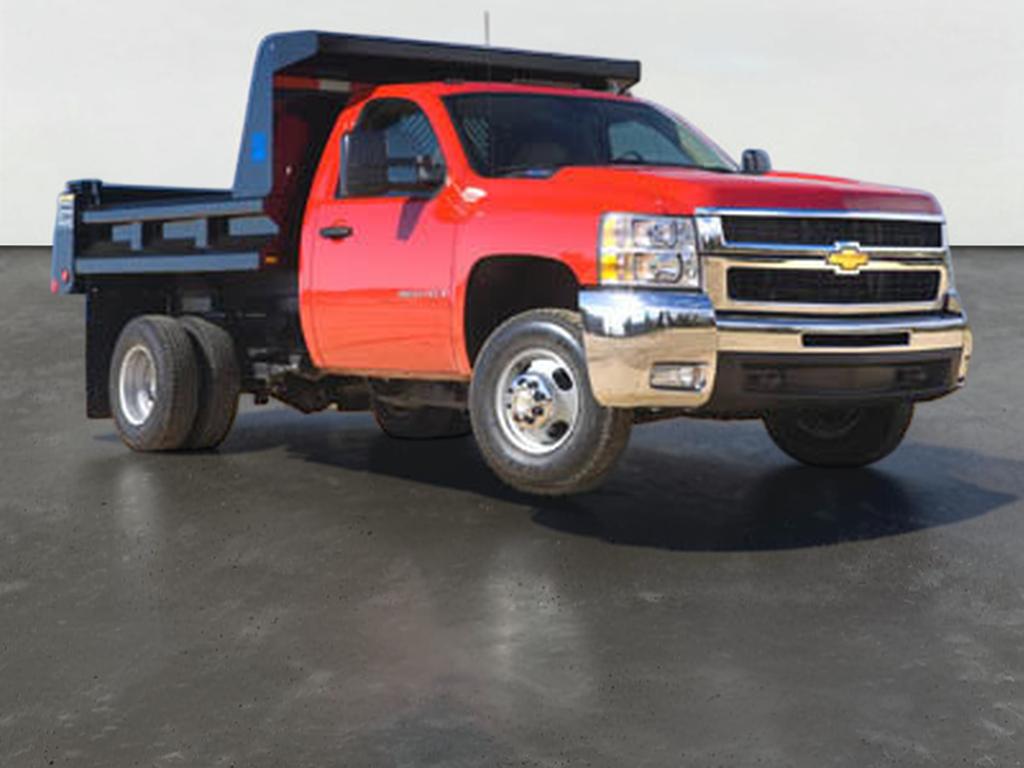

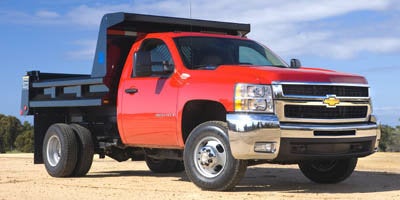

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Reg Cab 161.5" Wheelbase
• Body Code: ZW9
