• (6) speakers
• 12V aux pwr outlet
• Air conditioning
• Audio jack input for mobile devices
• Carpeted floor covering
• Column-mounted shifter
• Cruise control
• Day/night rearview mirror
• Fixed long mast antenna
• Floor tunnel insulation
• Folding rear bench seat
• Front/rear floor mats
• Pwr accessory delay
• Pwr door locks
• Pwr front windows w/1-touch up/down
• Rear under seat storage compartment
• Remote keyless entry
• Sentry Key theft deterrent system
• Sirius satellite radio (subscription required)
• Tilt steering column

• 160-amp alternator
• 700-amp maintenance-free battery
• Anti-lock 4-wheel disc brakes
• Electronic shift-on-the-fly part-time transfer case
• Four wheel drive
• Front stabilizer bar
• HD front shock absorbers
• HD rear shock absorbers
• Pwr rack & pinion steering
• Rear stabilizer bar
• Tip start electronic starting feature
• Trailer tow w/4-pin connector wiring

• Brake assist
• Child safety door locks
• Driver/front passenger multistage airbags
• Electronic stability program
• Front seat belt height adjusters
• Front seat side-impact airbags
• Front/rear side curtain airbags
• Tire pressure monitor w/display

24G SLT CUSTOMER PREFERRED ORDER SELECTION PKG

• 4.7L V8 engine
• 5-speed auto trans
• 3.55 axle ratio

LUXURY GROUP

• courtesy lamps & integrated turn signals for outside mirrors
• ash tray lamp
• glove box lamp
• underhood lamp
• dome lamp switch
• auto-dimming rearview mirror
• illum visor vanity mirrors
• leather-wrapped steering wheel w/audio controls
• universal garage door opener
• fold-away pwr heated auto-dimming outside mirrors

5-SPEED AUTOMATIC TRANSMISSION

• (STD)

4.7L V8 FLEX-FUEL ENGINE

• (STD)

BIG HORN REGIONAL PKG

• Luxury Group
• 20" x 8" aluminum wheels
• Bighorn badge
• bright billet grille
• fog lamps
• full size restricted use spare tire
• halogen quad headlamps
• locking lug nuts
• overhead console w/universal garage door opener
• P275/60R20 all-season BSW tires (w/EZH engine dual rear exhaust)

REMOTE START & SECURITY GROUP

• remote start system
• security alarm system

DARK SLATE GRAY, CLOTH 40/20/40 PREMIUM BENCH SEAT

• 10-way pwr driver seat w/pwr lumbar
• center seat storage cushion
• 115V aux pwr outlet
• 60/40 split-fold rear bench seat

• BRIGHT WHITE
• 24G SLT CUSTOMER PREFERRED ORDER SELECTION PKG -inc: 4.7L V8 engine 5-speed auto trans 3.55 axle ratio
• CLASS IV RECEIVER HITCH
• LUXURY GROUP -inc: courtesy lamps & integrated turn signals for outside mirrors ash tray lamp glove box lamp underhood lamp dome lamp switch auto-dimming rearview mirror illum visor vanity mirrors leather-wrapped steering wheel w/audio controls universal garage door opener fold-away pwr heated auto-dimming outside mirrors
• 5-SPEED AUTOMATIC TRANSMISSION (STD)
• 4.7L V8 FLEX-FUEL ENGINE (STD)
• BIG HORN REGIONAL PKG -inc: Luxury Group 20" x 8" aluminum wheels Bighorn badge bright billet grille fog lamps full size restricted use spare tire halogen quad headlamps locking lug nuts overhead console w/universal garage door opener P275/60R20 all-season BSW tires (w/EZH engine-inc: dual rear exhaust)
• 3.55 AXLE RATIO
• FOG LAMPS
• 20" X 9" CHROME CLAD ALUMINUM WHEELS
• REMOTE START & SECURITY GROUP -inc: remote start system security alarm system
• DARK SLATE GRAY CLOTH 40/20/40 PREMIUM BENCH SEAT -inc: 10-way pwr driver seat w/pwr lumbar center seat storage cushion 115V aux pwr outlet 60/40 split-fold rear bench seat
• Four Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Power Windows
• Sliding Rear Window
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Satellite Radio
• Requires Subscription
• Cloth Seats
• Split Bench Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Trip Computer
• Cruise Control
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Immobilizer
• A/C
• Power Outlet
• Front Reading Lamps
• Passenger Vanity Mirror
• Brake Assist
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Child Safety Locks
• Tire Pressure Monitor

• Mileage
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 700
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 10.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Rear (lbs): 3900
• Curb Weight - Front (lbs): 3047
• Curb Weight - Rear (lbs): 2201
• Gross Vehicle Weight Rating Cap (lbs): 6700
• Gross Combined Wt Rating (lbs): 11500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6050
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 907
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-link coil
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Rear: Solid
• Axle Capacity - Front (lbs): 3900
• Axle Capacity - Rear (lbs): 3900
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.2 x 1.10
• Rear Brake Rotor Diam x Thickness (in): 13.8 x 0.87
• Tires
• Front Tire Order Code: TTM
• Rear Tire Order Code: TTM
• Spare Tire Order Code: TBB
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 9.0
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 20 x 9.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr rack & pinion
• Steering Ratio (:1), On Center: Variable
• Steering Ratio (:1), At Lock: 3.3
• Turning Diameter - Curb to Curb (ft): 45.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 229.0
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 75.7
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 143.7
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 8.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 76.3
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.1
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 57.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 63.2
• Second Head Room (in): 39.7
• Second Leg Room (in): 34.7
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 62.9
• Summary

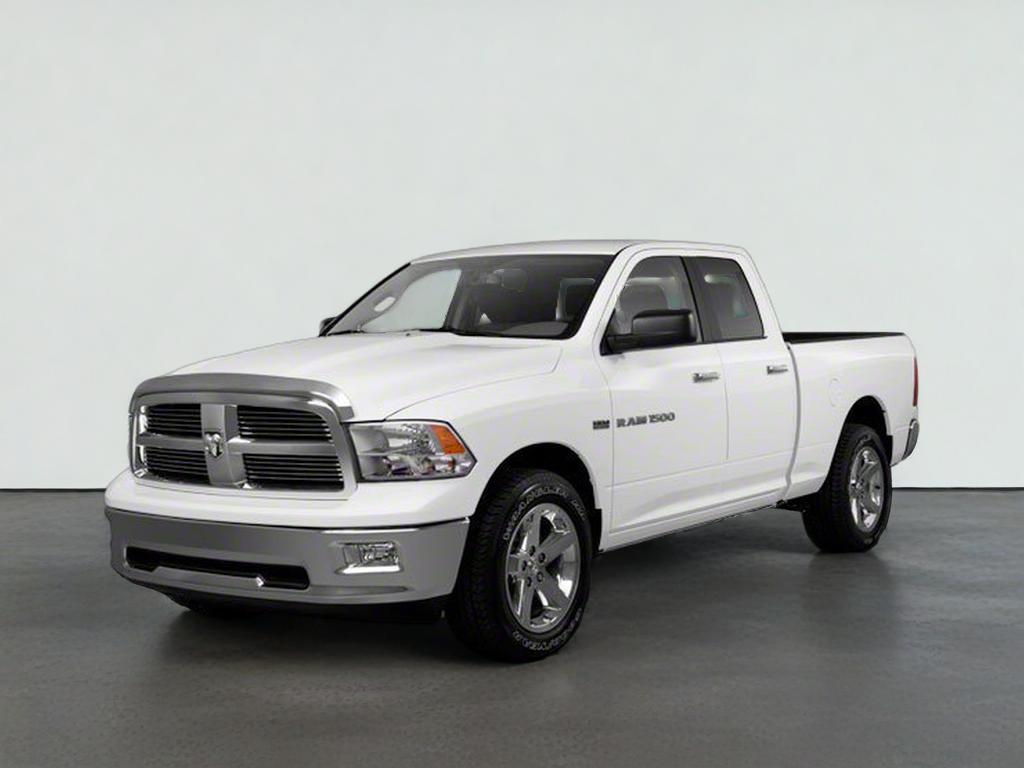

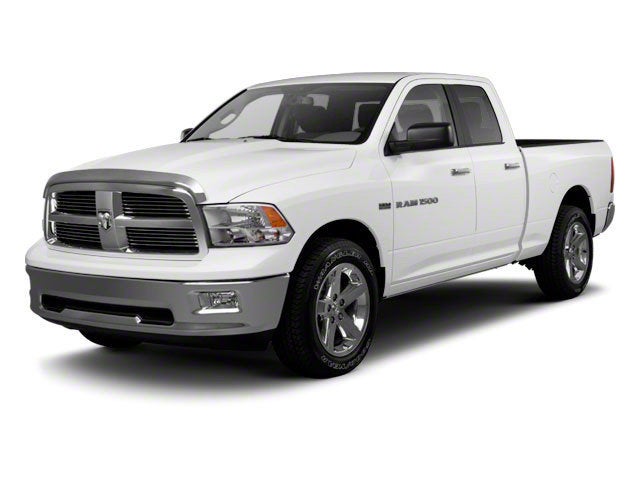

• Vehicle Name: Dodge Ram 1500
• Body Style: Quad Cab 6.3' Bed
• Body Code: 140.5" WB
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.4
