• 6-speaker audio system
• Assist handle, front passenger and driver on A-pillars
• Audio system, Chevrolet MyLink Radio with 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone. (Upgradeable to (IO6) Chevrolet MyLink 8" Diagonal Color Touch audio system with Navigation.)
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• Cruise control, steering wheel-mounted
• Defogger, rear-window electric
• Door locks, power
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information
• Floor covering, color-keyed carpeting (Double Cab and Crew Cabs include second row floor mats)
• Mirror, inside rearview auto-dimming
• OnStar Equipped (subscription required)
• Power outlet, 110-volt AC
• Radio, HD
• Remote Keyless Entry
• Remote vehicle starter system
• Seat trim, Leather-appointed front seats
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• SiriusXM Satellite Radio (subscription required)
• Steering column, manual Tilt-Wheel and telescoping
• Steering wheel audio controls
• Steering wheel, leather-wrapped with audio and cruise controls
• Theft-deterrent system, unauthorized entry
• Visors, driver and front passenger illuminated vanity mirrors
• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)

• Air bags Crew Cab: single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (With (ZW9) pickup box delete on Double and Regular Cab you will get single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, Guidance Plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake and (K05) engine block heater.)

DURAMAX PLUS PACKAGE

• includes (LML) Duramax 6.6L Turbo Diesel V8 engine
• (MW7) Allison 1000 6-speed automatic transmission
• (GT4) 3.73 rear axle ratio
• (K05) engine block heater
• (K40) exhaust brake and (IO6) Chevrolet MyLink 8" Diagonal Color Touch audio system with Navigation Includes (PDF) LTZ Plus Package.

LTZ PLUS PACKAGE

• for Crew Cab and Double Cab
• includes (JF4) power adjustable pedals
• (UQA) Bose premium audio system and (UD5) Front and Rear Park Assist.

AUDIO SYSTEM, CHEVROLET MYLINK RADIO WITH NAVIGATION AND 8" DIAGONAL COLOR TOUCH-SCREEN, AM/FM STEREO

• with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; featuring Apple CarPlay capability for compatible phone. (STD)

CONSOLE, FLOOR MOUNTED, RECONFIGURABLE

• with cup holders
• cell phone storage
• power cord management
• hanging file holder capability and (K4C) wireless charging

SEATS, FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET

• with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters
• including 2-way power lumbar control
• 2-position driver memory
• adjustable head restraints
• (D07) floor console
• storage pockets and (K4C) wireless charging.

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode

LTZ PREFERRED EQUIPMENT GROUP

• includes standard equipment

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member

Z71 PACKAGE, OFF-ROAD

• includes twin tube Rancho brand shocks
• (JHD) Hill Descent Control
• (NZZ) underbody shields. Also includes brushed metal Z71 door sill plate
• unique Z71 gauge cluster
• unique finish interior trim plates
• unique lower bumper appearance
• unique grille design with Z71 badge and Z71 pickup box decals

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

• DURAMAX PLUS PACKAGE includes (LML) Duramax 6.6L Turbo Diesel V8 engine (MW7) Allison 1000 6-speed automatic transmission (GT4) 3.73 rear axle ratio (K05) engine block heater (K40) exhaust brake and (IO6) Chevrolet MyLink 8" Diagonal Color Touch audio system with Navigation Includes (PDF) LTZ Plus Package.
• LTZ PLUS PACKAGE for Crew Cab and Double Cab includes (JF4) power adjustable pedals (UQA) Bose premium audio system and (UD5) Front and Rear Park Assist.
• AUDIO SYSTEM CHEVROLET MYLINK RADIO WITH NAVIGATION AND 8" DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; featuring Apple CarPlay capability for compatible phone. (STD)
• HILL DESCENT CONTROL
• LED LIGHTING CARGO BOX WITH SWITCH ON CENTER SWITCH BANK
• ENGINE BLOCK HEATER
• CONSOLE FLOOR MOUNTED RECONFIGURABLE with cup holders cell phone storage power cord management hanging file holder capability and (K4C) wireless charging
• SEATS FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control 2-position driver memory adjustable head restraints (D07) floor console storage pockets and (K4C) wireless charging.
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• LICENSE PLATE KIT FRONT
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• LANE DEPARTURE WARNING
• FORWARD COLLISION ALERT
• TUNGSTEN METALLIC
• DRIVER ALERT PACKAGE includes (UFL) Lane Departure Warning (UEU) Forward Collision Alert Safety Alert Seat and (UD5) Front and Rear Park Assist
• WIRELESS CHARGING
• SWITCH HIGH IDLE
• GVWR 10 000 LBS. (4536 KG)
• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B20-DIESEL COMPATIBLE (397 hp [296.0 kW] @ 3000 rpm 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake and (K05) engine block heater.)
• PEDALS POWER-ADJUSTABLE
• WHEELS 20" 5-SPOKE POLISHED ALUMINUM
• PAINT SOLID
• TIRES LT265/60R20E ALL-TERRAIN BLACKWALL
• DARK ASH WITH JET BLACK INTERIOR ACCENTS PERFORATED LEATHER-APPOINTED SEAT TRIM
• COVER 1-PIECE COVERS RADIATOR GRILLE AND FRONT BUMPER OPENINGS
• LTZ PREFERRED EQUIPMENT GROUP includes standard equipment
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member
• Z71 PACKAGE OFF-ROAD includes twin tube Rancho brand shocks (JHD) Hill Descent Control (NZZ) underbody shields. Also includes brushed metal Z71 door sill plate unique Z71 gauge cluster unique finish interior trim plates unique lower bumper appearance unique grille design with Z71 badge and Z71 pickup box decals
• FRONT AND REAR PARK ASSIST ULTRASONIC
• BOSE SOUND WITH 6 SPEAKER SYSTEM
• SEATING HEATED AND VENTED PERFORATED LEATHER-APPOINTED FRONT BUCKET
• STEERING WHEEL HEATED LEATHER WRAPPED WITH AUDIO AND CRUISE CONTROLS
• EXHAUST BRAKE
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Tow Hitch
• Power Steering
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• HD Radio
• Telematics
• WiFi Hotspot
• Requires Subscription
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Leather Seats
• Heated Front Seat(s)
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Cruise Control
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Power Door Locks
• Cruise Control
• Security System
• Remote Engine Start
• Keyless Entry
• Power Door Locks
• Universal Garage Door Opener
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Rear Defrost
• Sliding Rear Window
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Telematics
• Navigation from Telematics
• Requires Subscription
• Back-Up Camera
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 25.4
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6700
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 25100
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3475
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QFC
• Front Tire Order Code: QWF
• Rear Tire Order Code: QFC
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/60R20E
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/60R20E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.50
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.23
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.75
• Ground Clearance, Rear (in): 8.20
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.90
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.20
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

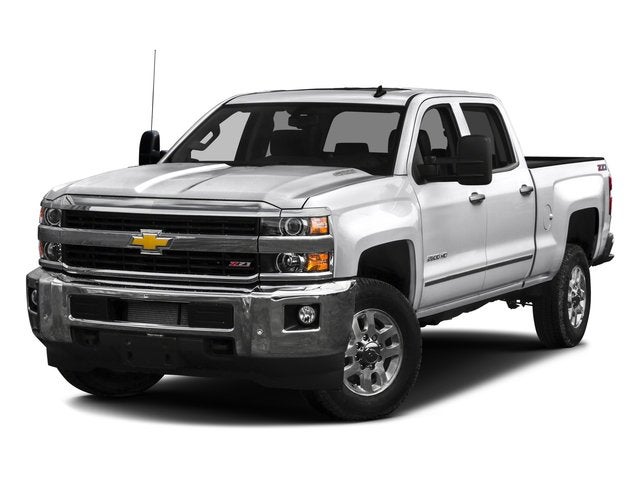

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
